Ehrlund E

Beschrijving

A light, studio microphone suitable for most instruments. The EHR-E can handle very high sounds. Due to its small format, it’s very versatile in usage and is great for electric guitars, horns, toms, snares and vocals.

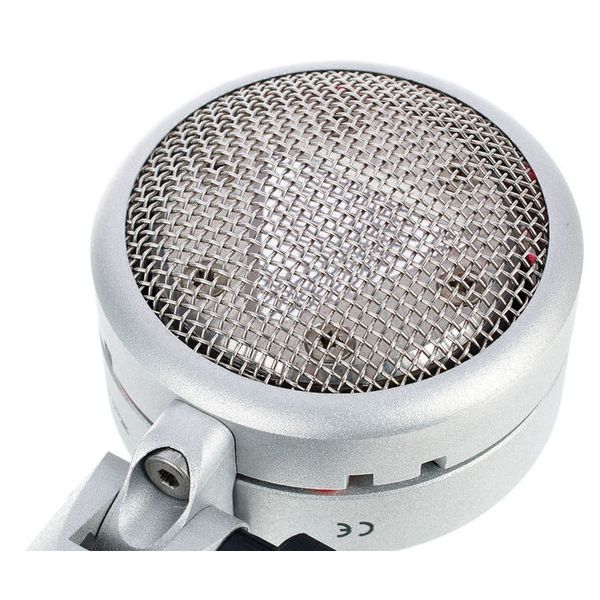

The EHR-E has an open, airy mesh to minimise acoustic filtering of sounds; a robust build, light weight and small size. It has a slightly narrower polar pattern than true cardioid which makes it great for miking instruments without getting other sounds ‘bleeding in’ from the sides. The convenient size and weight makes it easy to place on drums, horns, guitar amplifiers and other instruments.

Type Condenser microphone Membrane type Triangular membrane, combines the  characteristics of both large and small membranes Pickup pattern Cardioid Frequency range 7 – 87000 Hz Sensitivity at 1kHz -42 dBV/Pa (8 mV/Pa) Impedance Handles all impedances Equivalent noise level < 9 dBA Signal-to-noise 85 dBA Dynamic range 128 dB Max SPL (peak) Clip 155 dB 0.5% THD 132 dB 1% THD 137 dB Power supply 48 V Phantom power Current consumption 2.0 mA Connection nanoCon XLR female to 3-pin XLR male Materials Aircraft-grade aluminium body, hardened nickel-plated stainless steel net Finish Glass bead blasting Measurements Ø60 mm x 35 mm x 115 mm Weight 174 grams
